TEDEd lesson on the Curiosity rover

I just found this video of Bobak Ferdowsi (aka the 'Mohawk Guy') giving a talk on the the rover Curiosity before an audience of eager youthful minds. The video is one of many others as part of the 'TEDEd' project (where TED stands for Technology, Entertainment and Design) which sets to make short educational videos on various scholarly subjects and the like. They're quite entertaining AND insightful and you can access on for free as well as use to give lessons (provided its non-profit) in classrooms.
In the video you will notice how much the accuracy of landing things on Mars has greatly improved over the years since the Viking landers of 1976. Truly amazing accomplishments!

As for Curiosity, the spritely gal has finally collected her first sample with the drill using a combination of the pneumatic and rotating movements. This was after a 'mini-drill' session on sol 180 to see how friable and powdery the rock material would actually be. It seems everything checked out well to merit a full drill activity on sol 182!
The mini-drill hole is 2cm deep. (NASA/JPL/MSSS)
Sol 182 (Feb 8, 2013) drill hole is 6.4cm deep with a lot of fine powder
evident which was collected via a cork-screw'guide' along the shaft. (NASA/JPL/MSSS)
This sample will be used to washout and rinse the drill of contaminants that may have lingered since departure from Earth. Once that is done, the other analytical instruments will have some of the powdery material. Another interplanetary first for the mission! No other nation has ever attempted such a feat on another planet.
Overview of Curiosity's current work bench. 'Wernecke' was brushed by
the dust removal tool and 'Thundercloud' was percussed on without
any rotation by the drill last week. (NASA/JPL/MSSS)
P.S. its going to be a busy week what with the looming exams and all so expect fewer posts from me in the coming days. Don't forget to visit other sites I've pinned to the right-hand column!

Wednesday, February 6, 2013

The Drill-on-Rock checkout progress

Its been a hectic week for me, what with all the exams and all! But my treat for the end of the week of torture was brilliant. Curiosity has already inflicted a few dents on the flat rock its parked in front of called 'John Klein'.
Sol 176: Right mastcam eye true colour image showing the three sites where Curiosity
tested out its drill (NASA/JPL/MSSS)
This testing is called the drill-on-rock checkout and as you can see from the images the mission team has not yet commanded Curiosity to actually drill into the rock yet. Instead they are taking turns at chipping at the rock with the drill's percussive ability not unlike the pneumatic jack hammers that always manage to wear the nerves of a passer-by whenever they're used at construction sites here on Earth. That was done twice I presume on sol 176 (3 days ago as of this posting). But even before that, on sol 174, the drill's rotatory motion was given a go at the rock which we see as a ill-defined circle of grey dust near the bottom left in the image above.
Sol 174: The first drill operation captured by the right mastcam eye in colour
If you compare the 2 images above you can actually see what has resulted from all that percussive action; the sand piled neatly between the wide cracks to the left have spilt over and have spread out because of all that shaking. So what kind of forces are dealing with here? And what is with all the seemingly incomplete drilling?

To start with the latter question, the incomplete drilling is all about characterising the behaviour of John Klein when this instrument is used. The samples collected must behave like the soil used previously in the internal analytical experiments; like fine powder. And that's what this current phase of the checkout is supposed to do and from the looks of things, we can say pretty much that may be spot on. As to the question of what forces are we dealing with here, the drill must stay still and stable while doing all this or else all manner of hell can and will ensue. For example, the instrument may fault and get damaged or Curiosity may lose the drilling bit to the rock (although she has spare bits hidden away in the front for the arm to reload when needed). So the stability comes from the force of the arm pressing against the rock itself which may amount to around 30kg worth of force. With the 2 prongs sticking out by the sides of the drill, this provides enough stability for the long list of drillings yet to come. Testing this included some 'preloading' tests where the arm was positioned and repositioned in different locations on the rock to see if the weighty force doesn't do anything unexpected.

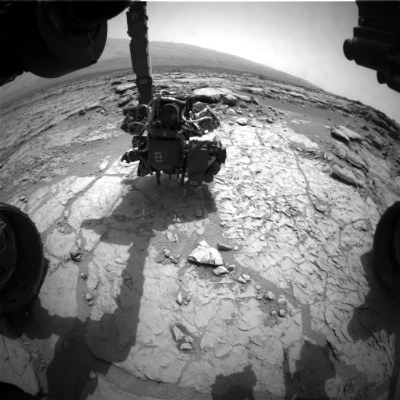

Sol 170: Fron hazard camera animation showing the pre-load test
in action (NASA/JPL/animation by Abraham Samma)
 As noted on the MSL science corner website:
In order to place and hold these turret-mounted devices on rock and soil targets, the current design of the RA is capable of exerting large forces between the turret-mounted hardware and the rock or soil surface. In particular, these large forces are required to stabilize the drill against a rock target in order to keep the device from “walking” across the surface of a rock when first engaging the rock surface with the cutting bit. The RA achieves this function by first placing the drill against the rock surface and then “overdriving” the actuators so that the entire system winds up against the overall stiffness of the RA. The sizing of the RA actuators allows this mechanism to produce more than 240 N at the tip of the arm in certain arm configurations
Sol 176: Inspecting the drill bit after the day's test. (NASA/JPL/MSSS)
 The rover did in fact suffer a fault (originating in the arm) on sol 174, the day when the drill first operated. Sol 175 resulted into a skipped day for planned operations with Curiosity executing a pre-planned default schedule for such kinds of time. The rover recovered quickly from the looks of things. But this does well to illustrate why these kinds of relatively simple acts can suddenly degrade very, very quickly if you're not careful.
Sol 176: the chink into John Klein viewed close-up by MAHLI. Notice the white vein of gypsum
to the left. (NASA/JPL/MSSS)
